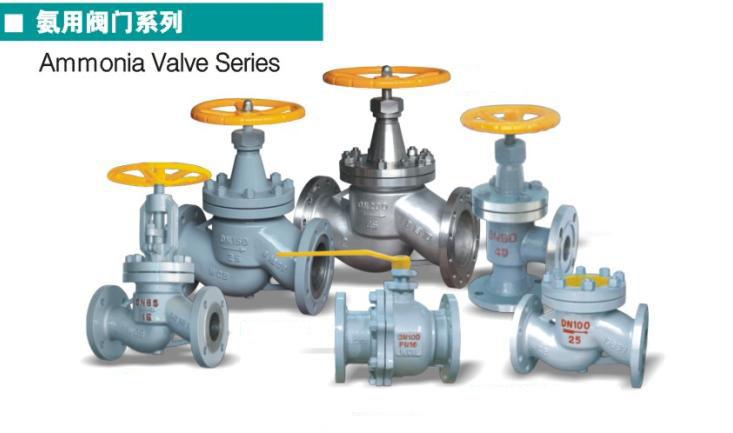

J41B型PN40氨用截止阀：手动、法兰连接、直通式、阀座密封面材料为尼龙塑料、公称压力PN40、阀体材料为碳素钢的截止阀。适用介质：液、气、氨、氮、氢。
【结构及用途】
1、中通法兰为方形结构、阀杆采用暗杆连接。
2、阀体密封面部位采用球凸状，与阀瓣以线吻合密封。
3、密封面采用巴氏合金，密封性能好，使用寿命长。
Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.
【产品零部件材料】
产品类型 | 零件名称 | |||||
阀体,阀盖 | 阀杆 | 填料 | 密封面 | 垫片 | 紧固件 | |
J44B-(16/25)C | 铸钢 | 碳钢 | 聚四氟乙烯 | 巴氏合金 | 石棉胶板 | 优质碳钢 |
J44B-(16/25)O | 球墨铸铁 | 碳钢 | 聚四氟乙烯 | 巴氏合金 | 石棉胶板 | 优质碳钢 |
J44B-(16/25)K | 可锻铸钢 | 碳钢 | 聚四氟乙烯 | 巴氏合金 | 石棉胶板 | 优质碳钢 |
【产品外形及结构尺寸】
公称通径 | 主要外形尺寸和连接尺寸 | |||||||
L | D | D1 | D2 | b | Z-d | H | D0 | |
J44B-16C | ||||||||
15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
50 | 230 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
65 | 290 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
80 | 310 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
100 | 350 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
125 | 400 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
150 | 480 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
200 | 600 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
250 | 650 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
300 | 750 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
350 | 850 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
400 | 980 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
J44B-25C | ||||||||
15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
50 | 230 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
65 | 290 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
80 | 310 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
100 | 350 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
125 | 400 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
150 | 480 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
200 | 600 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
250 | 650 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
300 | 750 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
350 | 850 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
400 | 980 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
These devices are suitable for accurately controlling media such as gases, liquids, steam, etc., and maintaining process parameters such as pressure, flow rate, temperature, and liquid level at given values. Especially suitable for work environments where the allowable pressure difference is small and the allowable leakage is also small, and the pressure difference is not significant.
