Product Overview

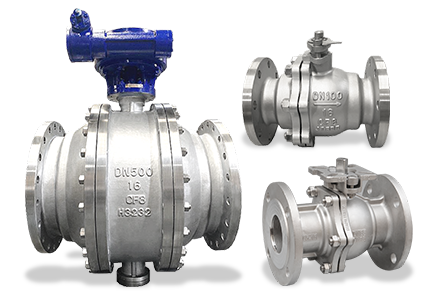

A ball valve is a type of valve that controls the on-off or flow rate of fluids by rotating the valve core (ball). Its core structure is a sphere with a circular through hole. The sphere rotates around an axis perpendicular to the main pipe axis to achieve full opening (through hole, aligned with the pipe), full closing (the sphere cuts off the pipe), or flow regulation (partially open) functions. Ball valves feature a simple structure, reliable sealing and low flow resistance. They are widely used in industrial fields such as petroleum, chemical engineering, natural gas and water treatment, as well as in civil pipeline systems.

Nominal diameter: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa ~ 10.0MPa/150Lb ~ 900Lb/10K ~ 20K

Overview:

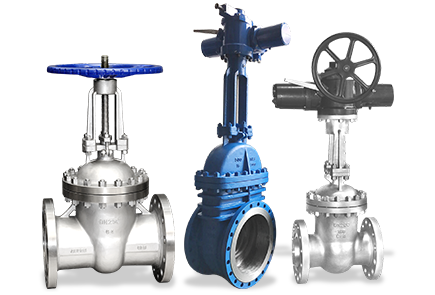

The gate valve is a kind of valve that uses the gate plate (opening and closing parts) to raise and lower along the center line of the channel to control the opening and closing of the pipeline. Through the fitting or separation of the sealing surface of the gate plate and the valve seat, the opening or closing of the fluid is realized. Its sealing

 It can rely on the cooperation of gate plates and valve seats, and is widely used in water supply and drainage, petrochemical, electric power, metallurgy and other industrial fields.

Nominal meridian:

Nominal diameter: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa ~ 10.0MPa/150Lb ~ 900Lb/10K ~ 20K

Product Overview:

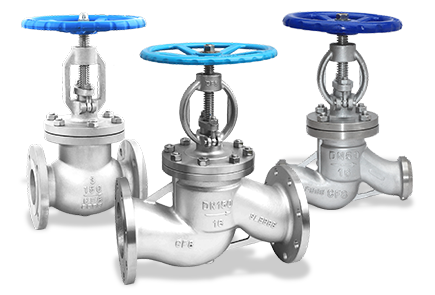

A globe valve is a valve that controls the fluid breakage by lifting and moving along the center line of the seat. The working principle is to fit or separate the valve office from the sealing surface of the seat to realize the load, adjustment or throttling of the pipeline intermediary. The globe valve has the characteristics of simple structure, reliable sealing and good adjustment performance. It is widely used in pipeline systems that require accurate control of flow or frequent opening and closing.

Nominal diameter: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa ~ 10.0MPa/150Lb ~ 900Lb/10K ~ 20K

Product Overview:

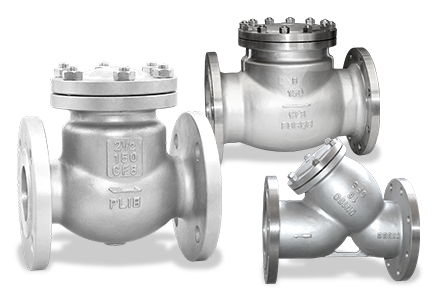

 Check valve refers to a valve in which the opening and closing part is a round disc and blocks the backflow of the medium by its own weight and medium pressure. It is an automatic valve, also known as reverse check valve, one-way valve, backflow valve or isolation valve.

 Filter is an indispensable device on the conveying medium pipeline. It is usually installed in the inlet equipment of pressure relief valves, pressure relief valves, fixed water level valves, square filters and other equipment.

Nominal diameter:DN10mm～600mm and 1/2'～24'

Nominal pressure: 0.25MPa～10.0MPa/150Lb～900Lb/10K～20K

Product Overview:

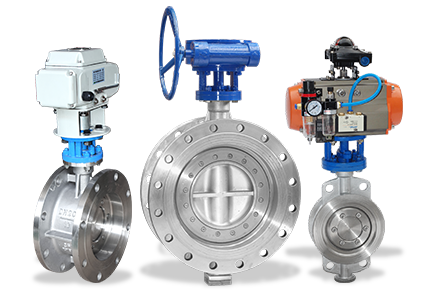

Butterfly valve, also known as flap valve, is a simple regulating valve. The butterfly valve that can be used for switch control of low-pressure pipeline media refers to a kind of valve in which the closing part (disp or butterfly plate) is a disk and rotates around the valve shaft to open and close. Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals and radioactive media. It mainly plays a cutting and throttling role on the pipeline. The opening and closing part of the butterfly valve is a disk-shaped butterfly plate that rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjusting.

Nominal diameter: DN40mm~4000mm and 1 1/2"~160"

Nominal pressure: 0.25MPa～42.0MPa/150Lb～2500Lb

Product overview:

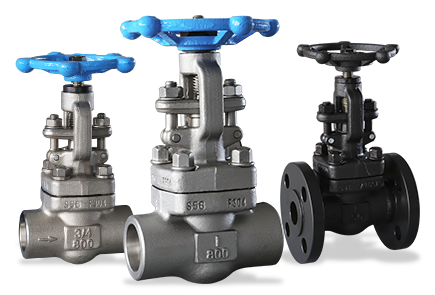

 Wrought steel valves are used for opening and closing parts for full opening and closing. This equipment is mainly suitable for pipelines of various systems of thermal power plants. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. Compared with other valve products, forged steel valves are characterized by high temperature and high pressure resistance and unique self-sealing design. The higher the pressure, the more reliable the sealing. Due to the performance, technical characteristics and special working conditions, the product has also formed characteristics that cannot be replaced by other products.

Nominal diameter: 1/2"~4"(DN10~DN100)

Nominal pressure: 150LB~4500LB(1.0MPa~76.0 MPa)

Product Overview:

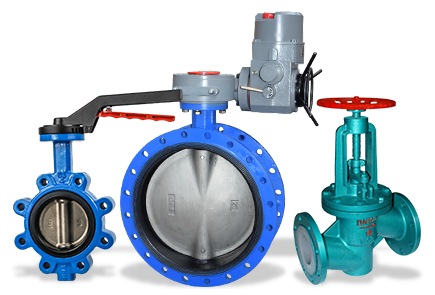

 The anti-corrosion valve is a control part of the pipeline fluid transportation system. It is used to change the direction of the path section and the flow of the medium. It has functions of diversion, cut-off, adjustment, throttling, checkback, shunt or overflow. Valves for fluid control, from the simplest globe valves to various valves used in extremely complex automatic control systems, there are many varieties and specifications. The nominal diameter of valves ranges from very small instrument valves to industrial pipeline valves with a diameter of up to 10m. Valves can be used to control the flow of various types of fluids such as water, steam, oil, gas, mud, various corrosive media, liquid metals and radioactive fluids.

Nominal diameter: DN10mm to 600mm and 1/2'～24'

Nominal pressure: 0.25MPa～10.0MPa/150Lb～900Lb/10K～20K

Overview:

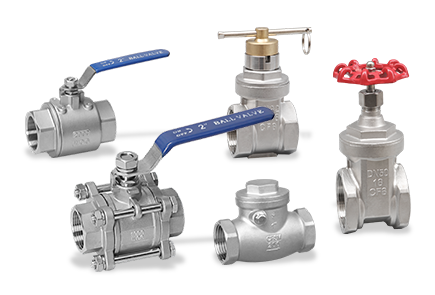

The plumbing wire buckle valve is a threaded valve specially adapted to hot water/cold water circulation pipelines (such as heating, air conditioning, domestic hot water systems). The core function is to realize the on-off, flow regulation or anti-reverse flow of the pipeline. Through the sealing structure of temperature-resistant and anti-rust materials such as brass and stainless steel + suitable for water media, it ensures stable operation at -10℃~120℃ (conventional working conditions) and medium and low pressure (PN≤1.6MPa), and is widely used in household heating, central air conditioning, wall-mounted furnaces, water heaters and other civil and commercial plumbing systems.

Nominal diameter: DN15~DN50mm

Nominal pressure: PN1.0~PN1.6MPa

Product Overview:

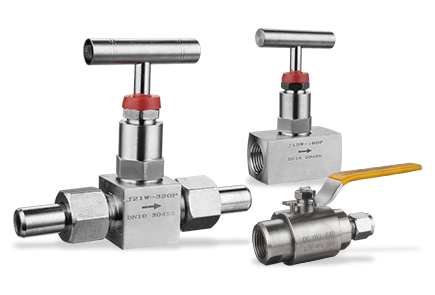

 Needle instrument valve (also known as instrument needle valve) is a small flow control valve specially designed for precision instrument pipeline systems. Through the precise cooperation of "needle disc + conical seat", it realizes the micro-adjustment, accurate truncation or sampling of the medium. The core adapts to the front control of pressure gauges, flow meters, liquid level meters and other instruments, as well as small-flow pipeline systems in laboratory, chemical, petroleum and other scenarios, which can operate steadily under medium and high pressure (PN≤63MPa) and wide temperature (-200°C~600°C).

Nominal diameter: DN5~DN25mm

Nominal pressure: PN2.5 PN4 PN6.4 PN16 PN32Mpa

Product overview:

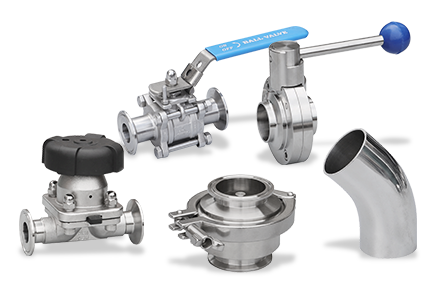

Sanitary valve fittings are system components composed of valves, pipelines, joints, elbows, three-ways, etc. Through material selection, structural design and optimization of processing technology, it realizes the characteristics of no sanitary dead corners, easy to clean, corrosion resistance, reliable sealing, etc., and avoids the contamination of the medium due to the components themselves in transmission. It is the key equipment to ensure the health and safety of terminal products.

Material: 304/316L

Manufacturing standards: 3A/ISO/IDF/DIN/SMS/RJT, etc.

Application: suitable for dairy, food, beer, beverages, pharmaceuticals, cosmetics and other industrial fields

Product Overview:

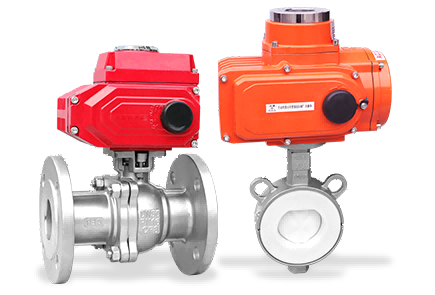

The electric device of an electric valve is one of the devices used to operate the valve and connect it to the valve. The device is driven by electricity, and its movement process can be controlled by the magnitude of stroke, torque, or axial thrust. The working characteristics and utilization rate of valve electric devices depend on the type of valve, the working specifications of the device, and the position of the valve on the pipeline or equipment. Therefore, mastering the correct selection of valve electric devices; Preventing overload (working torque higher than control torque) becomes a crucial aspect.

Nominal longitude: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa~10.0MPa/150Lb~900Lb/10K~20K

Product Overview:

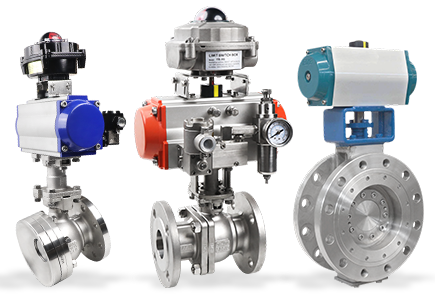

Pneumatic valve is a valve that uses compressed air to drive the movement of multiple sets of combined pneumatic pistons inside the actuator. The use of compressed air to drive multiple sets of combined pneumatic pistons inside the actuator, transmitting force to the crossbeam and inner curved track, drives the air core spindle to rotate. The compressed air disc is transmitted to each cylinder, changing the inlet and outlet positions to change the direction of spindle rotation. According to the required rotational torque of the load (valve), the number of cylinder combinations can be adjusted to drive the load (valve) to work.

Nominal diameter: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa~10.0MPa/150Lb~900Lb/10K~20K

Product Overview:

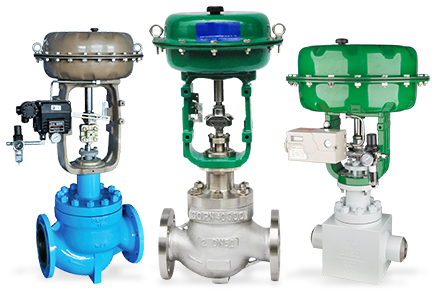

Regulating valve, also known as control valve, is a key device for regulating medium flow, pressure, temperature, liquid level and other parameters in industrial automation process control. It is widely used in chemical, electric power, metallurgy and other fields. It automatically adjusts the opening by receiving control system signals, achieving precise control of process parameters. The device consists of an actuator and a valve body, and the driving methods include pneumatic diaphragm type, cylinder type, etc. Special working conditions give rise to specialized types such as fluorine lined and self operated.

Nominal longitude: DN10mm~600mm and 1/2 '~24'

Nominal pressure: 0.25MPa~10.0MPa/150Lb~900Lb/10K~20K
