Three piece high-pressure ball valve

[Product use]

Q347F PN16~PN64 fixed ball valve is used in Class150~Class1500, PN16~PN64, JIS10K~JIS20K on various pipelines. It is used to cut off or connect the media in the pipeline. Different materials are selected, which can be applied to water, steam, oil, liquefied gas, natural gas, gas, nitric acid, acetic acid, oxidizing media, urea and other media.

[Product Features]

1. Among various valves, the flow resistance of the ball valve is minimal. When the full-diameter ball valve is opened, the spherical channel, valve body channel and connection pipe diameter are equal to form a diameter, and the medium can flow through almost without loss.

2. The ball valve can be fully turned off and opened quickly by rotating 90°. Compared with gate valves and globe valves of the same specifications, the ball valve is small in size and light in weight, which is convenient for pipeline installation.

Products and services that meet fluid control requirements

Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.

Detail

[Performance Parameters]

work pressure（MPa）		1.6~25.0
Applicable Temperature（℃）		≤180
Applicable Medium		Water, steam, oil products	Weakly corrosive medium
material	Valve body, valve cover	Carbon steel cast steel	Chromium nickel stainless steel
	sphere, valve stem	Chromium/Chromium Nickel/Chromium Nickel Molybdenum Stainless Steel	Chromium nickel stainless steel
	sealing ring	Flexible graphite gasket/316+flexible graphite gasket
	filler	Polytetrafluoroethylene

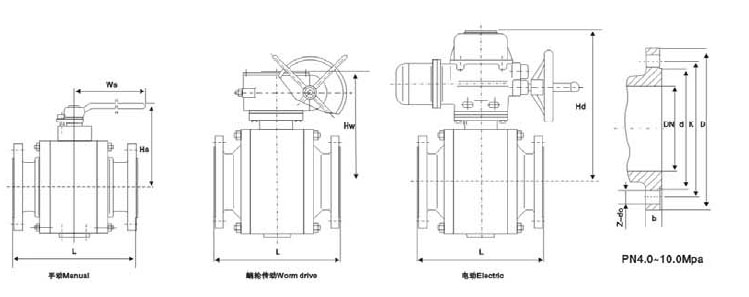

Main connection dimensions

PN	DN	L	D	K	d	Y	b	Z-d0	Ws	Hs	Hw	Hd
1.6MPa	40	165	145	110	85	-	16	4-18	230	135	-	-
	50	203	160	125	100	-	16	4-18	260	150	-	-
	65	222	180	145	120	-	18	4-18	350	180	-	-
	80	241	195	160	135	-	20	8-18	500	195	-	-
	100	305	215	180	155	-	20	8-18	650	245	310	420
	125	356	245	210	185	-	22	8-18	800	270	330	440
	150	394	280	240	210	-	24	8-23	1000	295	390	470
	200	457	335	295	265	-	26	12-23	-	-	440	510
	250	533	405	355	320	-	30	12-25	-	-	490	560
	300	610	460	410	375	-	30	12-25	-	-	530	600
	350	686	520	470	435	-	34	16-25	-	-	620	670
	400	762	580	525	485	-	36	16-30	-	-	675	720
	450	864	640	585	545	-	40	20-30	-	-	740	790
	500	914	705	650	608	-	44	20-34	-	-	825	870
	600	1067	840	770	718	-	48	20-41	-	-	920	960
2.5MPa	40	190	145	110	85	-	18	4-18	230	135	-	-
	50	216	160	125	100	-	20	4-18	260	150	-	-
	65	241	180	145	120	-	22	8-18	350	180	-	-
	80	283	195	160	135	-	22	8-18	500	195	-	-
	100	305	230	190	160	-	24	8-23	650	245	310	420
	125	381	270	220	188	-	28	8-25	800	270	330	440
	150	403	300	250	218	-	30	8-25	1000	295	390	470
	200	502	360	310	278	-	34	12-25	-	-	440	510
	250	568	425	370	332	-	36	12-30	-	-	490	560
	300	648	485	430	390	-	40	16-30	-	-	530	600
	350	762	550	490	448	-	44	16-34	-	-	620	670
	400	838	610	550	505	-	48	16-34	-	-	675	720
	450	914	660	600	555	-	50	20-34	-	-	740	790
	500	991	730	660	610	-	52	20-41	-	-	825	870
	600	1143	840	770	718	-	56	20-41	-	-	920	960
4.0MPa	40	190	145	110	85	76	18	4-18	230	135	-	-
	50	216	160	125	100	88	20	4-18	260	150	-	-
	65	241	180	145	120	110	22	8-18	350	180	-	-
	80	283	195	160	135	121	22	8-18	500	195	-	-
	100	305	230	190	160	150	24	8-23	800	250	320	430
	125	381	270	220	188	176	28	8-25	1000	280	340	450
	150	403	300	250	218	204	30	8-25	1200	300	405	480
	200	502	375	320	282	260	38	12-30	-	-	450	530
	250	568	445	385	345	313	42	12-34	-	-	505	590
	300	648	510	450	408	364	46	16-34	-	-	545	620
	350	762	570	510	465	422	52	16-34	-	-	640	690
	400	838	655	585	535	474	58	16-41	-	-	690	740
	450	914	680	610	560	524	60	20-41	-	-	760	810
	500	991	755	670	612	576	62	20-48	-	-	850	900
6.4MPa	40	241	165	125	95	76	24	4-23	260	140	-	-
	50	292	175	135	105	88	26	4-23	260	160	-	-
	65	330	200	160	130	110	28	8-23	350	180	-	-
	80	356	210	170	140	121	30	8-23	500	220	-	-
	100	406	250	200	168	150	32	8-25	800	250	320	430
	125	450	295	240	202	176	36	8-30	1000	295	340	450
	150	495	340	280	240	204	38	8-34	1200	340	405	480
	200	597	405	345	300	260	44	12-34	-	-	450	530
	250	673	470	400	352	313	48	12-41	-	-	505	590
	300	762	530	460	412	364	54	16-41	-	-	545	620
	350	826	595	525	475	422	60	16-41	-	-	640	690
	400	902	670	585	525	474	66	16-48	-	-	690	740
	500	1054	800	705	640	576	70	20-54	-	-	760	810
10.0MPa	40	241	165	125	95	76	26	4-23	260	160	-	-
	50	292	195	145	112	88	28	4-25	350	180	-	-
	65	330	220	170	138	110	32	8-25	500	200	-	-
	80	356	230	180	148	121	34	8-25	800	240	310	410
	100	432	265	210	172	150	38	8-30	1000	270	340	450
	125	508	310	250	210	176	42	8-34	1200	320	360	505
	150	559	350	290	250	204	46	12-34	-	-	425	555
	200	660	430	360	312	260	54	12-41	-	-	470	625
	250	787	500	430	382	313	60	12-41	-	-	525	645
	300	838	585	500	442	364	70	16-48	-	-	565	715
	350	889	665	560	498	422	76	16-54	-	-	670	770
	400	991	715	620	558	474	80	16-54	-	-	720	840
16.0MPa	40	305	175	125	92	76	32	4-27	350	160	-	-
	50	368	215	165	132	88	36	8-25	500	180	-	-
	65	419	245	190	152	110	44	8-30	800	200	-	-
	80	425	260	205	168	121	46	8-30	1000	240	310	410
	100	457	300	240	200	150	48	8-34	1200	270	340	450
	125	559	355	285	238	176	60	8-41	-	-	360	505
	150	610	390	318	270	204	66	12-41	-	-	425	560
	200	737	480	400	345	260	78	12-48	-	-	530	630
	250	838	580	485	425	313	88	12-54	-	-	570	720
	300	965	665	570	510	364	100	16-54	-	-	680	780
20.0MPa	40	305	170	124	90	56	34	4-27	500	180	-	-
	50	368	210	160	128	70	40	8-28	650	200	-	-
	65	419	260	203	165	97	48	8-30	800	220	-	-
	80	470	290	230	190	116	54	8-34	1000	260	320	420
	100	564	360	292	245	138	66	8-41	1200	290	360	470
	125	673	385	318	270	170	76	12-41	-	-	380	530
	150	705	440	360	305	190	82	12-41	-	-	440	580
	200	832	535	440	380	245	92	12-48	-	-	550	650
	250	991	670	572	508	319	110	12-54	-	-	590	740
25.0MPa	40	305	180	124	92	68.28	32	4-29.5	500	180
	50	368	215	165	124	95.25	38.5	8-26	650	200
	65	419	245	190.5	137	107.95	41.5	8-29.5	800	220
	80	470	265	203	168	136.52	48	8-32.5	1000	260	320	420
	100	564	310	241.5	194	161.92	54	8-35.5	1200	290	360	470
	125	673	375	292	229	193.68	73.5	8-42			380	530
	150	705	395	317.5	248	211.12	83	12-39			440	580
	200	832	485	393.5	318	269.88	92	12-45			550	650
