National standard flange ball valve

[Product Use]

Q41F type PN16~PN64 flange ball valve is used in various pipelines of Class150~Class1500, PN16~PN64,

JIS10K~JIS20K. It is used to cut off or connect the medium in the pipeline. Different materials are selected, which can be applied to water, steam, oil, liquefied gas, natural gas, nitric acid, acetic acid, oxidizing medium, urea and other media.

[Product Features]

1. In various valves, the flow resistance of the ball valve is small. When the full-diameter ball valve is opened, the ball channel, the valve body channel and the connection pipe diameter are equal in diameter, and the medium can flow through almost without loss.

2. The ball valve can be fully closed by rotating 90°, and it can open and close quickly. Compared with gate valves and globe valves of the same specifications, the ball valve is small in size and light in weight, which is convenient for pipeline installation.

Products and services that meet fluid control requirements

Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.

Detail

[Performance Parameters]

Model		Q41F-16C	Q41F-16P
		Q41F-25C	Q41F-25P
work pressure（MPa）		1.6~2.5
Applicable Temperature（℃）		≤180
Applicable Medium		Water, steam, and oil products	Weakly corrosive medium
Material	Valve body, valve cover	Carbon steel cast steel	Chromium nickel stainless steel
	Sphere, valve stem	Chromium/Chromium Nickel/Chromium-Nickel-Molybdenum Stainless Steel	Chromium nickel stainless steel
	Sealing ring	Flexible graphite gasket/316+flexible graphite gasket
	Filling	Polytetrafluoroethylene

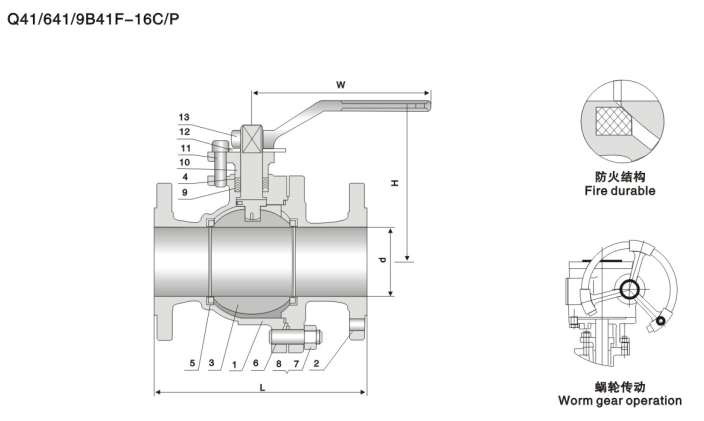

Main connection dimensions

Nominal Diameter DN	Main external connection dimensions
Nominal Diameter DN	L	D	D1	D2	B	Z-d	H	W
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P
15	130	95	65	45	14	4-14	78	140
20	140	105	75	55	14	4-14	84	160
25	150	115	85	65	14	4-14	95	180
32	165	135	100	78	16	4-18	150	250
40	180	145	110	85	16	4-18	150	300
50	200	160	125	100	16	4-18	170	350
65	220	180	145	120	18	4-18	195	350
80	250	195	160	135	20	8-18	215	400
100	280	215	180	155	20	8-18	250	500
125	320	145	210	185	22	8-18	265	600
150	360	280	240	210	24	8-23	270	800
200	400	335	295	265	26	12-23	330	800
250	530	405	355	320	30	12-25	450	1300
Q41F-16C Q41F-16P Q641F-16C Q641F-16P Q9B41F-16C Q9B41F-16P
15	130	95	65	45	16	4-14	103	100
20	140	105	75	55	16	4-14	112	160
25	150	115	85	65	16	4-14	123	160
32	165	135	100	78	18	4-18	150	250
40	180	145	110	85	18	4-18	156	250
50	200	160	125	100	20	4-18	172	350
65	220	180	145	120	22	8-18	197	350
80	250	195	160	135	22	8-18	222	450
100	280	230	190	160	24	8-23	253	450
125	320	270	220	188	28	8-25	275	600
150	360	300	250	218	30	8-25	286	800
200	400	360	310	278	34	12-25	340	1200
250	530	425	370	332	36	12-30	470	1400
