Product overview

SRB14 through basket filter is an indispensable pipeline accessory in industrial production. Installed on the pipeline, it can filter out solid impurities in the fluid, ensure the normal operation of the pipeline equipment system, and make the fluid purer and obtain ideal industrial products. After a period of use, open the top cover to take out the basket-type filter. The net can be restored as new once it is washed and brushed. Therefore, it has been widely used in petroleum, chemical, pharmaceutical, food and other industries.

Nominal diameter: DN25～DN300

Filter material: stainless steel

Working pressure: PN1.6MPa～6.4MPa

Connection method: flange

Applicable temperature: -30℃～+380℃

Function: Filter impurities in the pipeline

Valve body material: cast steel, stainless steel

Manufacturing standards: GB, DIN, API, ANSI

Applicable media: water, oil, steam, gas, liquid, etc.

Products and services that meet fluid control requirements

Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.

Detail

Use and performance specifications

Advantages of the product

1. High filtration accuracy, the fineness of the filter can be configured according to customer needs.

2. The working principle is simple, the structure is not complicated, and it is easy to install, disassemble and maintain.

3. There are few consumable parts of the equipment, no consumables, low operation and maintenance costs, and simple operation and management.

4. Stabilize the production process, protect instruments and machinery and equipment, and maintain the safety and stability of production.

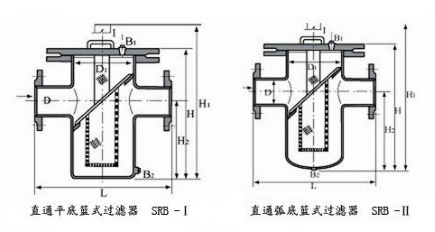

5. The core part of the filter is the filter core, which is composed of a filter frame and a stainless steel wire mesh.

Technical parameters

Shell material	Cast iron, carbon steel	Stainless steel
Material of filter frame and filter screen	Stainless steel
Material of the seal	Oil-resistant asbestos, flexible graphite, polytetrafluoroethylene
Working temperature(℃)	-30～+380	-80～+450
Nominal pressure(MPa)	0.6～6.4 (150Lb～300Lb)
Filtration accuracy（目/in）	10-300
Connection method	Flange, butt welding
