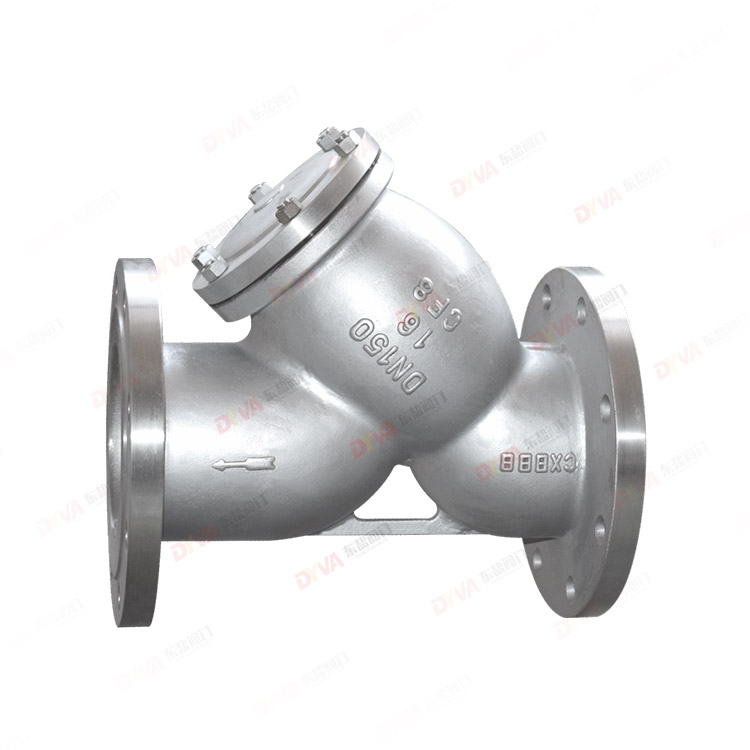

Y-Type filter

Product Overview

The Y-type flange filter features an advanced structure, low resistance, short drainage time, high efficiency, convenient installation and maintenance, and low cost. The applicable media are water, steam and oil, which can meet the requirements of different pipelines.

Product Model: GL41H

Nominal diameter: DN15-500mm

Nominal pressure: PN1.6 to 10MPa (150Lb to 600Lb)

Operating temperature: Brass -30 to 380℃, carbon steel -80 to 425℃, stainless steel -80 to 450℃

Structural length standard: DIN3202-F1

Flange standard: DIN2531-2545

Products and services that meet fluid control requirements

Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.

Detail

Main performance parameters

Model	PN	Working pressure (Mpa	Applicable temperature (℃)	Applicable medium
GL41H-10	10	1.0	≤ 120	Water, steam, oil
GL41H-16	16	1.6	≤ 200	Water, steam, oil
GL41H-16Q	16	1.6	≤ 220	Water, steam, oil

Main component materials

Model	Material
Model	Valve body, valve cover	Filter screen	Plug	Gasket
GL41H-10	Gray cast iron	Stainless steel	Malleable cast iron	Rubber asbestos board
GL41H-16	Gray cast iron	Stainless steel	Malleable cast iron	Rubber asbestos board
GL41H-16Q	球磨铸铁	Stainless steel	可Malleable cast iron	橡胶石棉板

Main shape and structural dimensions (mm)

Model	DN	L	D	z×Φd	H	Weight/kg
GL41H-10	50	250	160	4×Φ18	168
	65	280	180	4×Φ18	185
	80	315	195	4×Φ18	200
	100	370	215	8×Φ18	255
	125	450	245	8×Φ18	295
	150	510	280	8×Φ23	345
	200	560	335	8×Φ23	425
	250	745	390	12×Φ23	515
	300	780	440	12×Φ23	600
GL41H-16Q	50	250	160	4×?18	168
	65	280	180	4×Φ18	185
	80	315	195	8×Φ18	200
	100	370	215	8×Φ18	255
	125	450	245	8×Φ18	295
	150	510	280	8×Φ23	345
	200	560	335	12×Φ23	425
	250	745	405	12×Φ25	515
	300	780	460	12×Φ25	600
GL41H-16	32	180	135	4×Φ18	90	4.9
	40	220	145	4×Φ18	125	7.3
	50	240	160	4×Φ18	145	10.1
	65	280	180	4×Φ18	165	14
	80	320	195	8×Φ18	210	19.2
	100	380	215	8×Φ18	250	27
	125	440	245	8×Φ18	295	49.7
	150	480	280	8×Φ23	335	59.4
	200	600	335	12×Φ23	380	97.2
	250	605	405	12×Φ25	430	132.4
	300	635	460	12×Φ25	460	173.2
	350	696	520	16×Φ25	495	230
	400	790	580	16×Φ30	560	320
	450	850	640	20×Φ30	641	460
