Hard-sealed flanged butterfly valve

D343H and D343W three-eccentric multi-level hard sealing butterfly valves are widely used in the pipelines of corrosive media such as metallurgy, electricity, petroleum, chemical industry, air, gas, flammable gas and water supply and drainage.

[Structural features]

1. The hard seal butterfly valve adopts a three-eccentric hard seal structure, and the valve seat and butterfly plate are almost wear-free, and the sealing function is getting tighter and tighter.

2. The sealing ring is made of stainless steel, which has the dual advantages of metal hard sealing and elastic sealing. Whether at low or high temperature, it has excellent sealing performance, corrosion resistance, long service life and other characteristics.

3. The sealing surface of the butterfly plate is made of cobalt-based cemented carbide, which is wear-resistant and has a long service life.

4. The large-sized butterfly board adopts a kilted structure, with high strength, large flow area and small flow resistance.

5. According to user needs, the hard seal butterfly valve of the valve supply network can be designed with a two-way sealing function. When installed, it is not limited by the direction of the medium flow, nor is it affected by the spatial location, and can be installed in any direction.

6. The drive device can be installed at multiple workstations (rotate 90° or 180°), which is convenient for users to use.

Products and services that meet fluid control requirements

Each process, each facility, and each environmental constraint has its own special requirements. Therefore, Dongyan offers a comprehensive range of products covering different performance levels, pressures, different functions and different materials.

Detail

Standard Specification

Design and manufacturing standard: GB/T 12238-2008

Structural length standard: GB/T 12221-2005

Connection flange standard: GB/T 9113

Pressure and temperature grade: GB/T 12224-2005

Test and inspection standard: GB/T 13927-2008

Main Performance Specifications

Nominal diameter	DN（mm）	50-4000
Nominal pressure	PN（MPa)	1.0	1.6	2.5
Test pressure	Strength test	1.5	2.4	3.75
	Sealing test	1.1	1.76	2.75
	Gas seal test	0.6	0.6	0.6

Product Component Materials

Model		D343H-16	D343W-16P	D343W-16R
Work pressure（MPa）		1.6
Applicable temperature（℃）		≤425	≤200
Applicable medium		Water, oil or non-corrosive media	Nitric acid medium	Acetic acid medium
Material	Valve body, butterfly plate	WCB	CF8/304	CF3M/316L
	Valve stem	2Cr13	304	316L
	Sealing surface of the valve body	Surfacing welding 507	－	－
	Butterfly plate sealing surface	304＋Flexible graphite	304＋PTFE	304＋PTFE
	Packing material	Flexible graphite	PTFE	PTFE

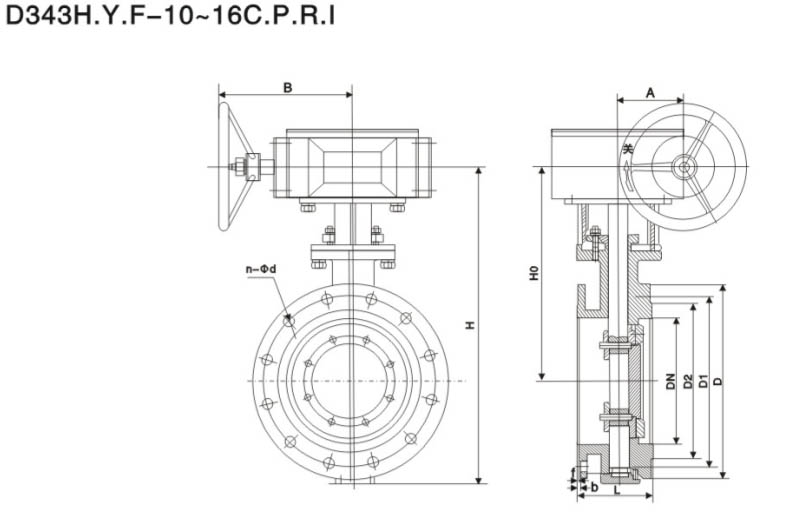

Main shape and connection Dimensions

PN	DN	L	D	D1	D2	Z-d	b	f	H	H0
1.0	50	108	165	125	99	4-18	20	2	170	130
1.0	65	112	185	145	118	4-18	20	2	170	145
1.0	80	114	200	160	132	8-18	20	2	230	152
1.0	100	127	220	180	156	8-18	22	2	320	192
1.0	125	140	250	210	184	8-18	22	2	345	200
1.0	150	140	285	240	211	8-22	24	2	385	230
1.0	200	152	340	295	266	8-22	24	2	471	297
1.0	250	165	405	355	319	12-22	26	2	533	327
1.0	300	178	445	400	370	12-22	26	2	606	364
1.0	350	190	505	460	429	16-22	26	2	694	404
1.0	400	216	565	515	480	16-26	26	2	757	444
1.0	450	222	615	565	530	20-26	28	2	814	472
1.0	500	229	670	620	582	20-26	28	2	902	522
1.0	600	267	780	725	682	20-30	34	2	1048	590
1.0	700	292	895	840	794	24-30	34	5	1277	810
1.0	800	318	1015	950	901	24-33	36	5	1385	844
1.0	900	330	1115	1050	1001	28-33	38	5	1490	890
1.0	1000	410	1230	1160	1112	28-36	38	5	1620	950
1.6	50	108	165	125	99	4-18	20	2	170	130
1.6	65	112	185	145	118	4-18	20	2	170	145
1.6	80	114	200	160	132	8-18	20	2	230	152
1.6	100	127	220	180	156	8-18	22	2	320	192
1.6	125	140	250	210	184	8-18	22	2	345	200
1.6	150	140	285	240	211	8-22	24	2	385	230
1.6	200	152	340	295	266	12-22	24	2	471	297
1.6	250	165	405	355	319	12-26	26	2	533	327
1.6	300	178	460	410	370	12-26	28	2	606	364
1.6	350	190	520	470	429	16-26	30	2	694	404
1.6	400	216	580	525	480	16-30	32	2	757	444
1.6	450	222	640	585	548	20-30	40	2	814	472
1.6	500	229	715	650	609	20-33	44	2	902	522
1.6	600	267	840	770	720	20-36	54	2	1048	590
1.6	700	292	910	840	794	24-36	40	5	1277	810
1.6	800	318	1025	950	901	24-39	42	5	1385	844
1.6	900	330	1125	1050	1001	28-39	44	5	1490	890
1.6	1000	410	1225	1170	1112	28-42	46	5	1620	950
2.5	50	108	165	125	99	4-18	20	2	170	130
2.5	65	112	185	145	118	8-18	22	2	265	210
2.5	80	114	200	160	132	8-18	24	2	310	233
2.5	100	127	235	190	156	8-22	24	2	343	242
2.5	125	140	270	220	184	8-26	26	2	385	254
2.5	150	140	300	250	211	8-26	28	2	445	580
2.5	200	152	360	310	274	12-26	30	2	510	297
2.5	250	165	425	370	330	12-30	32	2	569	339
2.5	300	178	485	430	389	16-30	34	2	653	375
2.5	350	190	555	490	448	16-33	38	2	730	420
2.5	400	216	620	550	503	16-36	40	2	810	463
2.5	450	222	670	600	548	20-36	46	2	850	495
2.5	500	229	730	660	609	20-36	48	2	940	566
2.5	600	267	845	770	720	20-39	58	2	1150	630
2.5	700	292	960	875	820	24-42	58	5	1195	727
2.5	800	318	1085	990	609	24-36	58	5	1268	810
